Declaration of a global styles data type:

(*Main control datatype*)
TYPE
    gMainType :     STRUCT  (*Main control variable datatype*)
        Cmd : gMainCmdType; (*Main commands*)
        Par : gMainParType; (*Main parameter*)
        Status : gMainStatusType; (*Main status*)
    END_STRUCT;
    gMainCmdType :     STRUCT  (*Main commands type*)
        Power : BOOL; (*Power on the system*)
        Start : BOOL; (*Start a plane movement for the selected shuttle*)
        Stop : BOOL; (*Stop all shuttles in the system*)
        ErrorReset : BOOL; (*Reset any active error*)
    END_STRUCT;
    gMainParType :     STRUCT  (*Main parameter type*)
        SelectedShuttleIndex : UINT; (*Selected index in the global array of shuttle references*)
        Velocity : REAL; (*InPlane (X,Y) Velocity*)
        Acceleration : REAL; (*InPlane (X,Y) Acceleration*)
        InPlanePosition : McAcp6DInPlaneAxesType; (*InPlane (X,Y) Position*)
    END_STRUCT;
    gMainStatusType :     STRUCT  (*Main status type*)
        AsmState : McAcp6dPLCopenStateEnum; (*Assembly state*)
        ShuttlesPresent : UINT; (*Number of shuttles present on the assembly*)
        SelectedShuttleID : UINT; (*ID of the shuttle which was selected in the array*)
    END_STRUCT;
END_TYPE
(*Global shuttle array datatype*)
TYPE
    gShuttleListType :     STRUCT  (*Global shuttle list datatype*)
        ID : UINT; (*ID of the shuttle*)
        Ref : Mc6DShuttleType; (*Reference to the shuttle*)
    END_STRUCT;
END_TYPE

Declaration of a global variable:

(*Communication Variables*)
VAR
    gCommInput : Mc6DControllerFBIOType; (*Communication variable INPUT*)
    gCommOutput : Mc6DControllerFBIOType; (*Communication variable OUTPUT*)
END_VAR
(*CONSTANTS*)
VAR CONSTANT
    MAX_NUM_SHUTTLE : UINT := 50; (*Maximum numer of shuttles on the system (50 Shuttles)*)
END_VAR
(*Derived CONSTANTS*)
VAR CONSTANT
    MAX_INDEX_SHUTTLE : UINT := MAX_NUM_SHUTTLE - 1; (*Maximum index for a shuttles on the system (0 to MAX_NUM_SHUTTLE - 1)*)
END_VAR
(*Global Control Variable*)
VAR
    gMain : gMainType; (*Global control variable*)
    gShuttleList : ARRAY[0..MAX_INDEX_SHUTTLE] OF gShuttleListType; (*Global shuttle list*)
END_VAR

Data type declaration of program "StartMovement":

TYPE
    MainStepEnum :
        ( (*States for the main state machine*)
        MAIN_STARTUP,
        MAIN_POWER_OFF,
        MAIN_DISABLED,
        MAIN_POWER_ON,
        MAIN_GET_SHUTTLE,
        MAIN_GET_SHUTTLE_WAIT,
        MAIN_READY,
        MAIN_START_MOVEMENT,
        MAIN_STOP_MOVEMENT,
        MAIN_ERROR
        );
END_TYPE

Variable declaration of program "StartMovement":

(*Function Blocks*)
VAR
    fbAsmReadInfo : MC_BR_AsmReadInfo_Acp6D;
    fbAsmPowerOn : MC_BR_AsmPowerOn_Acp6D;
    fbAsmPowerOff : MC_BR_AsmPowerOff_Acp6D;
    fbAsmGetShuttle : MC_BR_AsmGetShuttle_Acp6D;
    fbAsmStop : MC_BR_AsmStop_Acp6D;
    fbMoveInPlane : MC_BR_MoveInPlane_Acp6D;
    fbAsmReset : MC_BR_AsmReset_Acp6D;
END_VAR
(*Local Vars*)
VAR
    MainStep : MainStepEnum; (*Variable for the state machine*)
    i : UINT;
END_VAR

Program "StartMovement":

PROGRAM _INIT

    (* Call communication variables once to ensure they are created *)
    gCommInput;
    gCommOutput;
    (* Assign assembly reference to function blocks *)
    fbAsmReadInfo.Assembly := ADR(gAssembly6D_1);
    fbAsmPowerOn.Assembly := ADR(gAssembly6D_1);
    fbAsmPowerOff.Assembly := ADR(gAssembly6D_1);
    fbAsmGetShuttle.Assembly := ADR(gAssembly6D_1);
    fbAsmStop.Assembly := ADR(gAssembly6D_1);
    (* Set parameters for function block "fbMoveInPlane" *)
    fbMoveInPlane.Parameters.Mode := mcACP6D_MOVE_ABSOLUTE;
    fbMoveInPlane.Parameters.Path := mcACP6D_PATH_X_THEN_Y;
    fbMoveInPlane.Parameters.EndVelocity :=    0.0;
    (* Initialize main control parameters *)
    gMain.Par.Velocity := 1.0;    //[m/s]
    gMain.Par.Acceleration := 10.0;    //[m/s²]
    gMain.Par.InPlanePosition.X := 0.36;    //[m]
    gMain.Par.InPlanePosition.Y := 0.12;    //[m]
    (* Enable diagnostic function block *)
    fbAsmReadInfo.Enable := TRUE;

END_PROGRAM

PROGRAM _CYCLIC

    (* Check for current assembly state *)
    IF (gMain.Status.AsmState = mcACP6D_ERRORSTOP) THEN
        (* If an error occurs, go to the error state *)
        MainStep := MAIN_ERROR;
    ELSIF (gMain.Status.AsmState = mcACP6D_STARTUP) THEN
        (* As long, as the 6D - controller is in startup, stay in startup state *)
        MainStep :=    MAIN_STARTUP;
    END_IF

    (* Limit the selected index for the shuttle list *)
    gMain.Par.SelectedShuttleIndex := LIMIT(0, gMain.Par.SelectedShuttleIndex, MAX_INDEX_SHUTTLE);

    (* State machine *)
    CASE MainStep OF
        MAIN_STARTUP:
            (* Wait for the 6D controller to be started *)
            IF (gMain.Status.AsmState = mcACP6D_DISABLED) THEN
                (* If assembly is disabled *)
                MainStep := MAIN_DISABLED;
            ELSIF NOT(gMain.Status.AsmState = mcACP6D_STARTUP) THEN
                (* If assembly is in any other state, disable it *)
                MainStep := MAIN_POWER_OFF;
            END_IF

        MAIN_POWER_OFF:
            (* Activate Function block *)
            fbAsmPowerOff.Execute := TRUE;
            (* Wait for the command to be done OR if the assembly state is already correct *)
            IF (fbAsmPowerOff.Done) OR (gMain.Status.AsmState = mcACP6D_DISABLED) THEN
                (* Reset the function block *)
                fbAsmPowerOff.Execute := FALSE;
                (* Next step *)
                MainStep := MAIN_DISABLED;
            ELSIF (fbAsmPowerOff.Error) THEN
                (* Next step *)
                MainStep := MAIN_ERROR;
            END_IF

        MAIN_DISABLED:
            (* Wait for the power on command *)
            IF (gMain.Cmd.Power) THEN
                (* Next step *)
                MainStep := MAIN_POWER_ON;
            END_IF

        MAIN_POWER_ON:
            (* Activate Function block *)
            fbAsmPowerOn.Execute := TRUE;
            (* Wait for the command to be done OR if the assembly state is already correct *)
            IF (fbAsmPowerOn.Done) OR (gMain.Status.AsmState = mcACP6D_READY) THEN
                (* Reset the function block *)
                fbAsmPowerOn.Execute := FALSE;
                (* Delete data from global shuttle array *)
                brsmemset(ADR(gShuttleList),0,SIZEOF(gShuttleList));
                (* Init index *)
                i := 0;
                (* Next step *)
                MainStep := MAIN_GET_SHUTTLE;
            ELSIF (fbAsmPowerOn.Error) THEN
                (* Next step *)
                MainStep := MAIN_ERROR;
            END_IF

        MAIN_GET_SHUTTLE:
            (* Enable the function block *)
            fbAsmGetShuttle.Enable := TRUE;
            (* Wait until the data is valid *)
            IF (fbAsmGetShuttle.Valid) THEN
                (* Check any shuttle is present *)
                IF (fbAsmGetShuttle.TotalCount > 0) THEN
                    (* Reset the "next" command *)
                    fbAsmGetShuttle.Next := FALSE;
                    (* Save the number of shuttles *)
                    gMain.Status.ShuttlesPresent := fbAsmGetShuttle.TotalCount;
                    (* Save the shuttle data *)
                    gShuttleList[i].ID := fbAsmGetShuttle.AdditionalInfo.ShuttleID;
                    gShuttleList[i].Ref := fbAsmGetShuttle.Shuttle;
                    (* Next step *)
                    MainStep := MAIN_GET_SHUTTLE_WAIT;
                ELSE
                    (* No shuttles present *)
                    gMain.Status.ShuttlesPresent := 0;
                    (* Disable the function block *)
                    fbAsmGetShuttle.Enable := FALSE;
                    (* Next step *)
                    MainStep := MAIN_READY;
                END_IF
            END_IF

        MAIN_GET_SHUTTLE_WAIT:
            (* Check if there are more shuttles to read out *)
            IF (fbAsmGetShuttle.RemainingCount > 0) THEN
                (* Get next shuttle *)
                fbAsmGetShuttle.Next := TRUE;
                (* Increase index *)
                i := i + 1;
                (* Next step *)
                MainStep := MAIN_GET_SHUTTLE;
            ELSE
                (* Reset the function block *)
                fbAsmGetShuttle.Enable := FALSE;
                (* Next step *)
                MainStep := MAIN_READY;
            END_IF

        MAIN_READY:
            IF NOT(gMain.Cmd.Power) THEN
                (* Reset command *)
                gMain.Cmd.Power := FALSE;
                (* Next step *)
                MainStep := MAIN_POWER_OFF;
            ELSIF (gMain.Cmd.Start) THEN
                (* Reset command *)
                gMain.Cmd.Start := FALSE;
                (* Next step *)
                MainStep := MAIN_START_MOVEMENT;
            ELSIF (gMain.Cmd.Stop) THEN
                (* Reset command *)
                gMain.Cmd.Stop := FALSE;
                (* Next step *)
                MainStep := MAIN_STOP_MOVEMENT;
            END_IF

        MAIN_START_MOVEMENT:
            (* Activate the function block *)
            fbMoveInPlane.Shuttle := ADR(gShuttleList[gMain.Par.SelectedShuttleIndex].Ref);
            fbMoveInPlane.Parameters.Velocity := gMain.Par.Velocity; //Parameter set in INIT, can be modified in Watch
            fbMoveInPlane.Parameters.Acceleration := gMain.Par.Acceleration; //Parameter set in INIT, can be modified in Watch
            fbMoveInPlane.Parameters.Position := gMain.Par.InPlanePosition; //Parameter set in INIT, can be modified in Watch
            fbMoveInPlane.Execute := TRUE;
            (* Wait for the command to be accepted *)
            IF (fbMoveInPlane.Acknowledge OR fbMoveInPlane.Done) THEN
                (* Reset the function block *)
                fbMoveInPlane.Execute := FALSE;
                (* Next step *)
                MainStep :=    MAIN_READY;
            ELSIF (fbMoveInPlane.Error) THEN
                (* Reset the function block *)
                fbMoveInPlane.Execute := FALSE;
                (* Next step *)
                MainStep := MAIN_READY;
            END_IF

        MAIN_STOP_MOVEMENT:
            (* Activate Function block *)
            fbAsmStop.Execute := TRUE;
            (* Wait for the command to be done *)
            IF (fbAsmStop.Done) THEN
                (* Reset the function block *)
                fbAsmStop.Execute := FALSE;
                (* Next step *)
                MainStep := MAIN_READY;
            ELSIF (fbAsmStop.Error) THEN
                (* Next step *)
                MainStep := MAIN_ERROR;
            END_IF

        MAIN_ERROR:
            (* Reset assembly with user command *)
            fbAsmReset.Execute := gMain.Cmd.ErrorReset;
            (* Reset the assembly after diagnosis *)
            IF (fbAsmReset.Done) THEN
                (* Reset command *)
                gMain.Cmd.ErrorReset := FALSE;
                gMain.Cmd.Power := FALSE;
                gMain.Cmd.Start := FALSE;
                gMain.Cmd.Stop := FALSE;
                (* Reset function blocks *)
                fbAsmReset.Execute := FALSE;
                fbAsmPowerOff.Execute := FALSE;
                fbAsmPowerOn.Execute := FALSE;
                fbAsmGetShuttle.Enable := FALSE;
                fbAsmGetShuttle.Next := FALSE;
                fbMoveInPlane.Execute := FALSE;
                fbMoveInPlane.Execute := FALSE;
                (* Next step *)
                IF (gMain.Status.AsmState = mcACP6D_DISABLED) THEN
                    MainStep := MAIN_DISABLED;
                ELSE
                    MainStep := MAIN_POWER_OFF;
                END_IF
            END_IF
    END_CASE

    (* 调用功能块 *)
    fbAsmReadInfo();
    fbAsmPowerOff();
    fbAsmPowerOn();
    fbAsmGetShuttle();
    fbAsmStop();
    fbMoveInPlane();
    fbAsmReset();

    (* 分配组件和当前所选托盘的信息 *)
    gMain.Status.AsmState := fbAsmReadInfo.AssemblyInfo.AssemblyState;
    gMain.Status.SelectedShuttleID := gShuttleList[gMain.Par.SelectedShuttleIndex].ID;

END_PROGRAM

PROGRAM _EXIT

    (* 禁用 FUB *)
    fbAsmReadInfo.Enable := FALSE;
    (* 调用功能块 *)
    fbAsmReadInfo();

END_PROGRAM

To control the movement of an ACOPOS 6D system, code examples are available here that can be transferred to the Automation Studio project (Logical View) directly or by with "Open as text".

The task can be assigned to any task class since mapp 6D is automatically executed in task class #1.

Global variable "gMain" can be used later for testing.

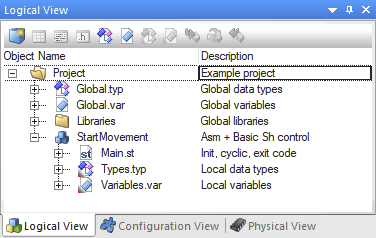

14_addtask

Fig.: Adding the source code in the Logical View
