This function block activates all segments within the power sector and identifies all shuttles within the power sector.

Requirements for use

•Assembly states in which this function block is permitted to be used:

•AssemblyReady

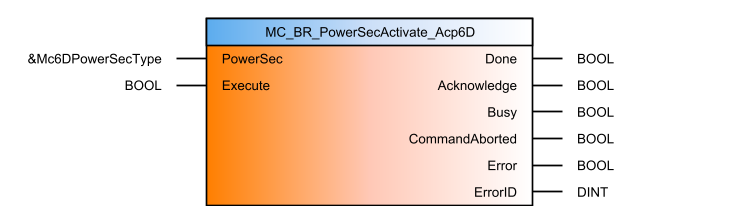

Function block

mc_br_powersecactivate_acp6d

Interface

I/O	Parameter	Data type	Description
IN	PowerSec	Reference to Mc6DPowerSecType	The power sector reference establishes the connection between the function block and a power sector.
IN	Execute	BOOL	Execution of the function block begins on a rising edge of this input.
OUT	Done	BOOL	Execution successful, function block finished.
OUT	Acknowledge	BOOL	The command is accepted and saved by the ACOPOS 6D controller.
OUT	Busy	BOOL	The function block is active and must continue to be called.
OUT	CommandAborted	BOOL	The command was aborted by another command.
OUT	Error	BOOL	Error during execution.
OUT	ErrorID	DINT	Error number

Table: Parameter
