MC_BR_AutoZoneClear_Acp6D

<< 点击显示目录 >>

主页 ACOPOS 6D使用手册 > mapp 6D > 功能块 > McAcp6D > Function blocks >

MC_BR_AutoZoneClear_Acp6D

This function block is used to notify the ACOPOS 6D controller that the loading zone is free and ready for loading the next shuttle.

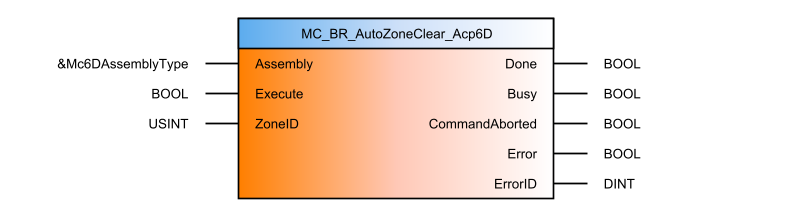

Function block

mc_br_autozoneclear_acp6d

Interface

I/O	Parameter	Data type	Description
IN	Assembly	Reference to Mc6DAssemblyType	The assembly reference establishes the connection between the function block and an assembly.
IN	Execute	BOOL	Execution of the function block begins on a rising edge of this input.
IN	ZoneID	USINT	Zone reference ID
OUT	Done	BOOL	Execution successful, function block finished.
OUT	Busy	BOOL	The function block is active and must continue to be called.
OUT	CommandAborted	BOOL	The command was aborted by another command.
OUT	Error	BOOL	Error during execution.
OUT	ErrorID	DINT	Error number

Table: Parameters
