This function block controls the barrier surrounding a segment.

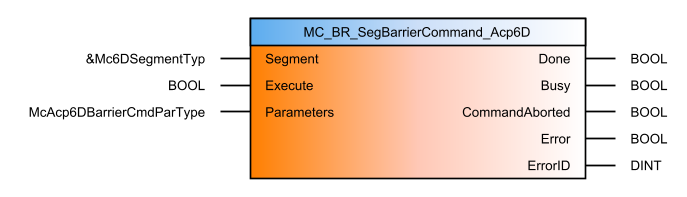

Function block

mc_br_segbarriercommand_acp6d

Interface

I/O	Parameter	Data type	Description
IN	Segment	Reference to Mc6DSegmentType	The segment reference establishes the connection between the function block and a segment.
IN	Execute	BOOL	Execution of the function block begins on a rising edge of this input.
IN	Parameters	McAcp6DBarrierCmdParType	Segment barrier command input.
OUT	Done	BOOL	Execution successful, function block finished.
OUT	Busy	BOOL	The function block is active and must continue to be called.
OUT	CommandAborted	BOOL	The command was aborted by another command.
OUT	Error	BOOL	Error during execution.
OUT	ErrorID	DINT	Error number

Table: Parameters
