This function block returns the references of all power sectors in the assembly.

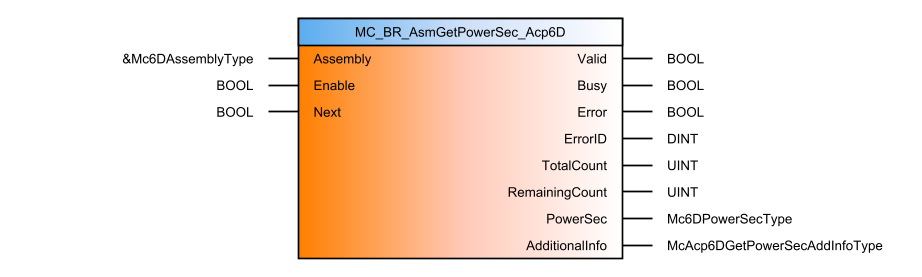

Function block
Interface
I/O |
Parameter |
Data type |
Description |
IN |
Reference to Mc6DAssemblyType |
The assembly reference establishes the connection between the function block and an assembly. |
|
IN |
BOOL |
The function block is active as long as this input is set. |
|
IN |
Next |
BOOL |
Execution of the function block is started on a rising edge of the input. |
OUT |
Valid |
BOOL |
The function block output values can be used. |
OUT |
Error |
BOOL |
Error during execution. |
OUT |
ErrorID |
DINT |
Error number |
OUT |
TotalCount |
UINT |
Total number of power sectors |
OUT |
RemainingCount |
UINT |
Number of power sectors still to be passed through |
OUT |
PowerSec |
Power sector reference |
|
OUT |
AdditionalInfo |
Additional information about the power sector |
Table: Parameter
